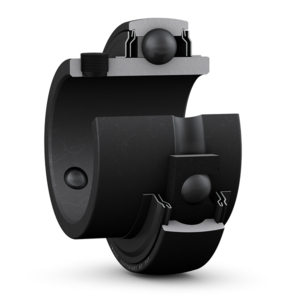

Insert bearing with set screw SKF YAR 208-2F/VA228, Outer diameter: 80 mm | Inner diameter: 40 mm | Width: 21 mm

Insert Bearing

See technical information

References

SKF:YAR 208-2F/VA228
Rubix:103A0138
EAN:7316579070843
brand logo

Technical specifications

Inner diameter40 mm
Outer diameter80 mm
Width21 mm
See all Specifications

Product details : SKF HI TEMP BEARING INSERT YAR 208-2F/VA228

SKF high temperature bearings are designed to deliver increased reliability, reduced complexity and decreased environmental impact in operating temperatures up to 350 °C (660 °F). This makes these products very suitable for applications in kiln trucks, roller hearth furnaces, and bakeries, where there are both constant and alternating directions of rotation.

Technical specifications

Attributes
Inner diameter40 mm
Outer diameter80 mm
Width21 mm
Sealingtwo metal shields
Seriesyar 208
Materialhigh temperature steel
Cageplastic
Reaming40 mm
Limit speed150 rpm
Total bearing width49.2 mm
Basic static load, radial - C0r19000 N
Basic dynamic load, radial - Cr30700 N
Weight0.61 kg
£ 246.64 excl. VAT
/ Each
£ 295.97 incl. VAT
  • Delivery usually within ( 3 ) days
