SNR UKP213H BEARING UNIT
SNR - Bearing Unit - UKP.213H
References
snr:UKP.213H
rubix:206A2182
ean:3413529505128
Technical specifications
| Inner diameter | 60 mm |
|---|---|
| Fixation centre-to-centre distance | 203 mm |
| Shaft Height | 76.2 mm |
Product details : SNR UKP213H BEARING UNIT

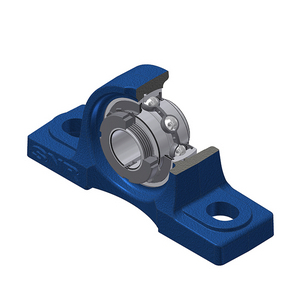

grey cast housing,radial insert ball bearing with adapter sleeve,seal with slinger
Technical specifications
Attributes
| Inner diameter | 60 mm |
|---|---|
| Fixation centre-to-centre distance | 203 mm |
| Shaft Height | 76.2 mm |
| Material | Cast Iron |
| Centre-centre of shaft | 76.2 mm |
| Height | 150 mm |
| Length | 265 mm |
| Total bearing width | 70 mm |
| Series | UKP200 |
| Weight | 6.12 kg |
| Diameter of fixation holes | 25 mm |
| Number of holes | 2 |
| Basic static load, radial - C0r | 40000 N |
| Basic dynamic load, radial - Cr | 57200 N |
| Outer diameter | 120 mm |
| Width | 36 mm |
Show UNSPSC/ECL@SS
£ 84.28 excl. VAT
/ Each
£ 101.14 incl. VAT
Usually arrives within 14 working days
