Deep groove ball bearing SNR 6308.HVZZ, Outer diameter: 90 mm | Width: 23 mm | Inner diameter: 40 mm
SNR - Specific ball bearings - 6308.HVZZ
References
snr:6308.HVZZ
rubix:205A0322
ean:3413520609368
Technical specifications

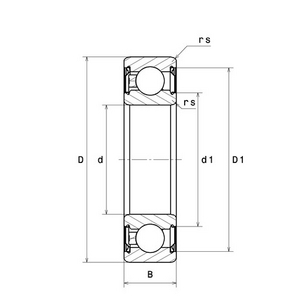

| Inner diameter | 40 mm |
|---|---|
| Outer diameter | 90 mm |
| Width | 23 mm |
Product details : SNR 6308HVZZ SPECIFIC BALL BEARINGS
TOPLINE deep groove ball bearing, radial contact, pressed polyamide cage, shields on both sides, for high speed applications.
Technical specifications
Attributes
| Inner diameter | 40 mm |
|---|---|
| Outer diameter | 90 mm |
| Width | 23 mm |
| Sealing | Two metal shields |
| Bearing Clearance | C3 |
| Series | 6300 |
| Cage | Polyamide |
| Reference speed | 9000 rpm |
| Limit speed | 11000 rpm |
| Basic static load, radial - C0r | 24000 N |
| Basic dynamic load, radial - Cr | 40300 N |
| Weight | 0.612 kg |
