FAG 22344-BE-XL-K-C3 SPHERICAL ROLLER BEARING
Spherical roller bearing
References
fag:22344-BE-XL-K-C3
rubix:274A6295
manufacturer :0654815000030
ean:4012802495300

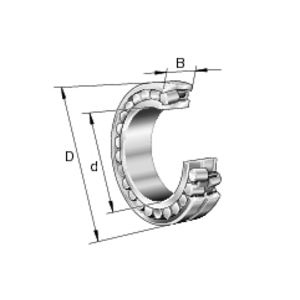

Technical specifications
| Inner diameter | 220 mm |
|---|---|
| Outer diameter | 460 mm |
| Width | 145 mm |
Product details : FAG 22344-BE-XL-K-C3 SPHERICAL ROLLER BEARING
Spherical roller bearings 223..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
Strengths
•Bearing arrangements are subjected to high and very high radial loads
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
Applications
Bearing
Technical specifications
Attributes
| Logistic Weight | 111900 g |
|---|---|
| Inner diameter | 220 mm |
| Outer diameter | 460 mm |
| Width | 145 mm |
| Bearing Clearance | C3 |
| Series | 223..-BE-XL-K |
| Reference speed | 950 rpm |
| Limit speed | 1690 rpm |
| Basic static load, radial - C0r | 3400000 N |
| Basic dynamic load, radial - Cr | 2800000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 3,046.64 excl. VAT
/ Each
£ 3,655.97 incl. VAT
Usually arrives within 14 working days
