761503 GUIDE ROLLER FPO 80X20/17-14K
Stainless steel swivel castor, with bolt hole fitting Nylon wheel
References
blickle:FPO 80x20/17-14K
rubix:241A2164
manufacturer :761503
ean:4047526103552
Technical specifications
| Load capacity | 270 kg |
|---|---|
| Wheel diameter | 80 mm |
| Wheel width | 20 mm |
Product details : 761503 GUIDE ROLLER FPO 80X20/17-14K
Bracket: LEXR series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
- all parts including axle material are corrosion-resistant

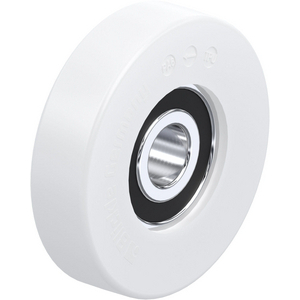

Wheel: PO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 185 g |
|---|---|
| Load capacity | 270 kg |
| Wheel diameter | 80 mm |
| Wheel width | 20 mm |
| Wheel housing/rim material | Polyamide |
| Running sole/tire material | Polyamide |
| Shore D Hardness | 70 Shore |
| Running sole / tire colour | Beige |
| Min. temperature | -20 °C |
| Max. temperature | 80 °C |
| 20 mm |
Show UNSPSC/ECL@SS
£ 18.11 excl. VAT
/ Each
£ 21.73 incl. VAT
Usually arrives within 14 working days
