The Gates Super HC V-belt combines the strength of a wrapped belt construction with the economies of a narrow section V-belt. It transmits more power in a given space and allows more compact drive design than classical section V-belts. In short, it offers you more power and considerably reduces the space needed. This significantly cuts the overall drive cost. Super HC V-belts also have exclusive Gates construction features for longer life on your drives!

Strengths

Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service and reduced pulley wear.
The Flex-Weave oil and heat resistant cover protects the belt.
The vulcanised Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads.
The belt will not catch fire from heat buildup, even with severe slippage.
Static conductive (ISO 1813) and can as such be used in the conditions described in the Directive 2014/34/EU- ATEX.
Meets RMA oil and heat resistant standards and static conductivity requirements.
Up to 300% capacity increase over classical belts.

Technical specifications

Attributes

Profile	SPB
Pitch length	8500 mm
Upper width	16 mm
Height	13 mm

Show UNSPSC/ECL@SS

£ 118.67 ^{excl. VAT}

/ Each

£ 142.40 ^{incl. VAT}

In stock: Next day delivery

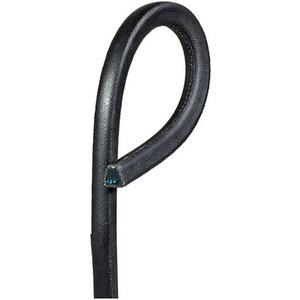

GATES SPB8500ESHC SUPER HC VBELT

Product details : GATES SPB8500ESHC SUPER HC VBELT
