TSUBAKI 5003000250 TFS-25 CAM CLUTCH
TFS-45 CAM CLUTCH
References
tsubaki:TFS25
rubix:267A0297
manufacturer :5003000250
ean:8718472212327
Technical specifications
| Inner diameter | 35 mm |
|---|---|
| Outer diameter | 62 mm |
| Width | 24 mm |

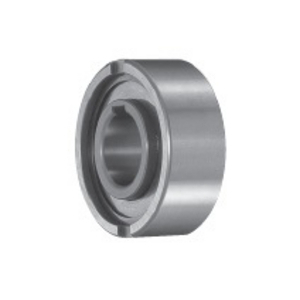

Product details : TSUBAKI 5003000250 TFS-25 CAM CLUTCH
Tsubaki TFS Series clutches are designed for press fit installation. Outside dimensions are the same as 63** ball bearings. TFS Clutches have two vertical key ways on the outer races. The usage of bearing support is compulsory.
Technical specifications
Attributes
| Logistic Weight | 367 g |
|---|---|
| Inner diameter | 35 mm |
| Outer diameter | 62 mm |
| Width | 24 mm |
| Series | TFS |
| Weight | 0.367 kg |
| Reference speed | 1000 rpm |
| Auth. torque | 128 N.m |
| Standard | DIN 6885. 1;DIN 6885. 3 |
Show UNSPSC/ECL@SS
£ 156.55 excl. VAT
/ Each
£ 187.86 incl. VAT
Usually arrives within 14 working days
