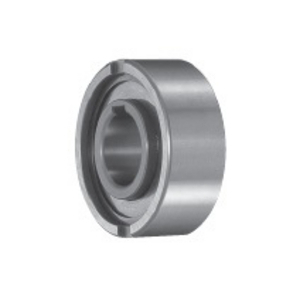

TSUBAKI 5003000400 TFS-40 CAM CLUTCH
TFS-45 CAM CLUTCH
References
tsubaki:TFS40
rubix:267A0300
manufacturer :5003000400
ean:8718472212396
Technical specifications
| Inner diameter | 40 mm |
|---|---|
| Outer diameter | 90 mm |
| Width | 33 mm |
Product details : TSUBAKI 5003000400 TFS-40 CAM CLUTCH
Tsubaki TFS Series clutches are designed for press fit installation. Outside dimensions are the same as 63** ball bearings. TFS Clutches have two vertical key ways on the outer races. The usage of bearing support is compulsory.
Technical specifications
Attributes
| Logistic Weight | 1030 g |
|---|---|
| Inner diameter | 40 mm |
| Outer diameter | 90 mm |
| Width | 33 mm |
| Series | tfs |
| Weight | 1.03 kg |
| Reference speed | 1300 rpm |
| Total bearing width | 33 mm |
| Auth. torque | 607 N.m |
| Standard | din 6885. 3 |
Show UNSPSC/ECL@SS
£ 275.78 excl. VAT
/ Each
£ 330.94 incl. VAT
Usually arrives within 14 working days
