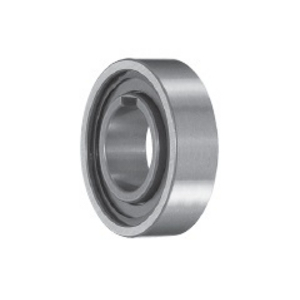

TSUBAKI 5002000300 TSS-30 CAM CLUTCH

TSUBAKI 5002000300 TSS-30 CAM CLUTCH

TSS-20 CAM CLUTCH

See technical informationSee documents
References
Tsubaki:TSS30
Rubix:267A0288
Manufacturer :5002000300
EAN:8718472212136
TSUBAKI FREEWHEEL CLUTCH TSS 30
TSUBAKI FREEWHEEL CLUTCH TSS 30
TSUBAKI FREEWHEEL CLUTCH TSS 30
Technical specifications
Inner diameter30 mm
Outer diameter62 mm
Width16 mm
See all Specifications
Documents

Product details : TSUBAKI 5002000300 TSS-30 CAM CLUTCH

Tsubaki TSS Series clutches are designed for press fit installation. Outside dimensions are the same as series 62 ball bearings. This design provides easy handling and installation, ideal for general applications.

Technical specifications

Attributes
Logistic Weight226 g
Inner diameter30 mm
Outer diameter62 mm
Width16 mm
Seriestss
Weight0.226 kg
Reference speed1800 rpm
Total bearing width16 mm
Auth. torque105 N.m
Standarddin 6885. 3
Show UNSPSC/ECL@SS
£ 137.32 excl. VAT
/ Each
£ 164.78 incl. VAT
  • Usually arrives within 14 working days
