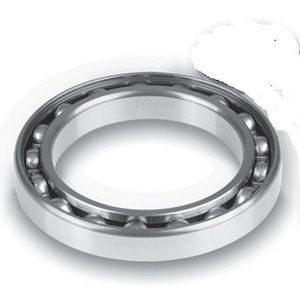

Deep groove ball bearing Timken 61906-2Z, Outer diameter: 47 mm | Width: 9 mm | Inner diameter: 30 mm

Thin-Section Bearing

See technical informationSee documents

References

Timken:61906-2Z
Rubix:100A4163
EAN:0053893772158
brand logo

Technical specifications

Inner diameter30 mm
Outer diameter47 mm
Width9 mm
See all Specifications

Documents

Product details : TIMKEN 61906-ZZ BALL BEARING WITH SHIELDS

A non-seperable single row ball bearing with deep raceway grooves and shields on both sides. Suitable for running at high speeds and can accommodate axial loads in both directions, in addition to radial loads, due to the close conformity between the raceway grooves and balls.

Technical specifications

Attributes
Inner diameter30 mm
Outer diameter47 mm
Width9 mm
Sealingtwo metal shields
Bearing Clearancecn
Series61000
Materialsteel
Cagesteel
Reference speed14000 rpm
Limit speed17000 rpm
Precisionp0 (normal / abec 1)
Basic static load, radial - C0r5 N
Basic dynamic load, radial - Cr7.2 N
Weight0.044 kg
£ 22.65 excl. VAT
/ Each
£ 27.18 incl. VAT
  • Delivery usually within ( 7 ) days
