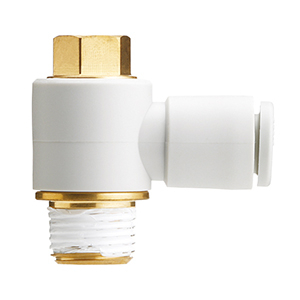

SMC KQ2V08-01NS NICKEL PLATED BRASS FITTING 1/8 MALE THREAD I 8 TUBE
Universal Male Elbow - KQ2V
References
rubix:2604413
Technical specifications
| Connection 1 | 8 mm |
|---|---|
| Connection 2 | R 1/8 in |
Product details : SMC KQ2V08-01NS NICKEL PLATED BRASS FITTING 1/8 MALE THREAD I 8 TUBE
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
•Universal male elbow.
•Applicable Tubing O.D.: ø4, ø6, ø8, ø10, ø12, ø16, ø1/8, ø5/32, ø3/16, ø1/4, ø5/16, ø3/8, ø1/2.
•Applicable Port Size: M5, 1/8, 1/4, 3/8, 1/2, 10-32 UNF.
Applicable Tube O.D.: ø 8
Port Size: 1/8
Thread Material /
Surface Treatment: N (Brass + Electroless Nickel Plated)
Sealant: S (With Thread Sealant)
Release Button: Round Type
•Applicable Tubing O.D.: ø4, ø6, ø8, ø10, ø12, ø16, ø1/8, ø5/32, ø3/16, ø1/4, ø5/16, ø3/8, ø1/2.
•Applicable Port Size: M5, 1/8, 1/4, 3/8, 1/2, 10-32 UNF.
Applicable Tube O.D.: ø 8
Port Size: 1/8
Thread Material /
Surface Treatment: N (Brass + Electroless Nickel Plated)
Sealant: S (With Thread Sealant)
Release Button: Round Type
Technical specifications
Attributes
| Connection 1 | 8 mm |
|---|---|
| Connection 2 | R 1/8 in |
| Length | 17.6 mm |
| Type of threading | R |
| Connecting diameter | R 1/8 '' |
| Metric exterior tube diameter | 8 mm |
| Threading | R 1/8 in |
| Max. temperature | 60 °C |
| Min. temperature | -5 °C |
| Type of fluid | Air;Water |
| Material | C3604, PBT, PP, 303 Stainless Steel |
Show UNSPSC/ECL@SS
£ 4.78 excl. VAT
/ Each
£ 5.74 incl. VAT
Delivery usually within ( 4 ) days
