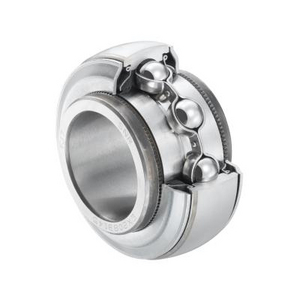

Insert bearing with set screw SNR EX308AGR, Outer diameter: 90 mm | Inner diameter: 40 mm | Width: 65.3 mm
Zinc-coated insert, spherical outer diameter, fastening by eccentric rings, AGR sealing, lifetime lubrication
See technical informationReferences
SNR:EX308AGR
Rubix:394A6421
EAN:3413521511134
Product details : SNR EX308AGR AGRICULTURAL BEARING
Insert bearings for self-aligning housings are offered with various support options for easier assembly.
Strengths
-One-piece JIS and ISO range
-Rigid stainless steel protective covers available for many housings
-The AGR bearing insert embodies our commitment to performance and reliability. Developed for the agricultural machinery industry, this insert is ideal for applications where factors such as contamination by dry particles and moisture are a concern and/or high mechanical impacts are expected.
Features: Maintenance-free high-performance grease, robust contact seal, corrosion protection thanks to galvanized surfaces.
-Rigid stainless steel protective covers available for many housings
-The AGR bearing insert embodies our commitment to performance and reliability. Developed for the agricultural machinery industry, this insert is ideal for applications where factors such as contamination by dry particles and moisture are a concern and/or high mechanical impacts are expected.
Features: Maintenance-free high-performance grease, robust contact seal, corrosion protection thanks to galvanized surfaces.
Applications
Offering exceptional value for money, the SNR range of self-aligning housings provides solutions for a wide range of applications such as: agricultural machinery, food and beverage processing, material handling, packaging machines, conveyor systems and many more.
The SNR portfolio gives you all the products you need at every stage of your production.
The SNR portfolio gives you all the products you need at every stage of your production.
Technical specifications
Attributes
| Inner diameter | 40 mm |
|---|---|
| Outer diameter | 90 mm |
| Width | 65.3 mm |
| Bearing Clearance | c3 |
| Series | agr |
| Material | chrome steel |
| Cage | steel |
| Limit speed | 3400 rpm |
| Lubrication Type | grease |
| Total bearing width | 65.3 mm |
| Basic static load, radial - C0r | 24000 N |
| Basic dynamic load, radial - Cr | 40560 N |
| Lubricant | high-performance grease |
| Weight | 1.28 kg |
Show UNSPSC/ECL@SS
£ 71.93 excl. VAT
/ Each
£ 86.32 incl. VAT
- Delivery usually within ( 3 ) days
