Insert bearing with set screw SKF YAR 211-200-2RF, Outer diameter: 100 mm | Inner diameter: 50.8 mm | Width: 55.6 mm
Insert Bearing
References
skf:YAR 211-200-2RF
rubix:103A0013
manufacturer :78196
ean:7316570496130
Technical specifications
| Inner diameter | 50.8 mm |
|---|---|
| Outer diameter | 100 mm |
| Width | 55.6 mm |

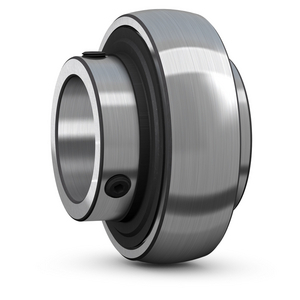

Product details : SKF BEARING INSERT YAR 211-200-2RF
Radial insert ball bearings are based on sealed deep groove ball bearings. This design is suitable for applications with constant and alternating directions of rotation. The inner ring, which is wider on both sides, is fastened to the shaft by tightening two fastening screws, making it easy to install.
Strengths
- Designed for constant and alternating rotary movements
- Quick and easy mounting on the shaft
- Absorption of installation-related misalignments
- Long service life
- Reduced noise and vibration level
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 55,6x100x100 mm |
|---|---|
| Logistic Weight | 1174 g |
| Inner diameter | 50.8 mm |
| Outer diameter | 100 mm |
| Width | 55.6 mm |
| Series | YAR |
| Cage | Other |
| Limit speed | 1900 rpm |
| Basic static load, radial - C0r | 29000 N |
| Basic dynamic load, radial - Cr | 43600 N |
| Sealing | Two rubber seals |
Show UNSPSC/ECL@SS
£ 67.15 excl. VAT
/ Each
£ 80.58 incl. VAT
Usually arrives within 14 working days
