RENOLD 08B1SNS26I 110446/26I

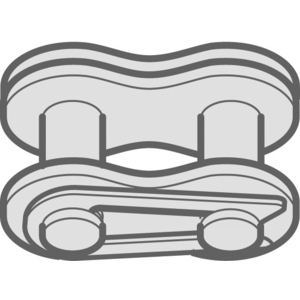

08B-1 single syno connecting shackle - loose fit no. 26
References
renold:08B1SNS26I
rubix:171A4947
ean:0673766004669
Technical specifications
| Chain | BS |
|---|---|
| Chain pitch | 12.7 mm |
| Profile | Simplex (1) |
Product details : RENOLD 08B1SNS26I 110446/26I
For use in hygiene-sensitive applications or situations where contamination from lubricant is to be avoided, the Renold Syno Nickel-Plated chain displays all the characteristics you need from a chain. With a food industry-approved lubricant within the sintered bush, this chain will not need re-lubricating in almost all instances.
Connecting shackles 08B-1
Technical specifications
Attributes
| Logistic Weight | 0,009 g |
|---|---|
| Chain | BS |
| Chain pitch | 12.7 mm |
| Profile | Simplex (1) |
| Inner width min. | 7.75 mm |
| Roller diameter | 8.51 mm |
| Plate height | 11.7 mm |
| Plate thickness | 1.55 mm |
| Pin length | 16.5 mm |
| Material | Steel |
| Type | Roller Chain |
| Plate type | Straight |
| Chain pin diameter | 4.45 mm |
Show UNSPSC/ECL@SS
£ 3.00 excl. VAT
/ Each
£ 3.60 incl. VAT
In stock: Next day delivery
