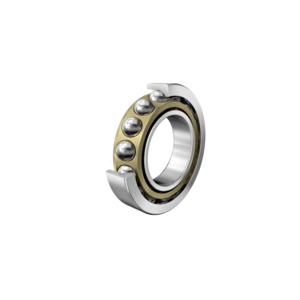

FAG 7322-B-XL-MP-UB ANGULAR CONTACT BALL BEARING

Angular contact ball bearing FAG 7322-B-XL-MP-UB, Outer diameter: 240 mm | Inner diameter: 110 mm | Width: 50 mm

Angular contact ball bearing

See technical information
References
FAG:7322-B-XL-MP-UB
Rubix:274A7171
Manufacturer :0928612530000
EAN:4054369901986
brand logo
Technical specifications
Inner diameter110 mm
Outer diameter240 mm
Width50 mm
See all Specifications

Product details : FAG 7322-B-XL-MP-UB ANGULAR CONTACT BALL BEARING

Angular contact ball bearing 73..-B-XL-MP, single row, X-life, solid brass cage
Angular contact ball bearing 73..-B-XL-MP, single row, X-life, solid brass cage

Technical specifications

Attributes
Inner diameter110 mm
Outer diameter240 mm
Width50 mm
Series73..-b-xl-mp
Reference speed3150 rpm
Limit speed4700 rpm
Basic static load, radial - C0r245000 N
Basic dynamic load, radial - Cr250000 N
Show UNSPSC/ECL@SS
£ 679.56 excl. VAT
/ Each
£ 815.47 incl. VAT
  • Usually arrives within 14 working days
