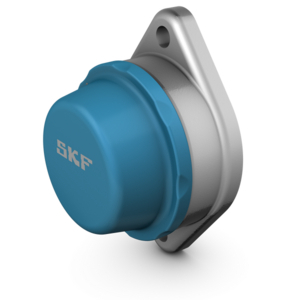

SKF F2BESS104S-CPSS-DFH FOOD LINE HSD UNIT
Ball Bearing Unit - Food Line
References
skf:F2BESS 104S-CPSS-DFH
rubix:216A4721
ean:07316579306898
Technical specifications
| Inner diameter | 31.75 mm |
|---|---|
| Width | 34.3 mm |
| Fixation centre-to-centre distance | 99 mm |
Product details : SKF F2BESS104S-CPSS-DFH FOOD LINE HSD UNIT
Flanged ball bearing units consisting of an insert bearing mounted in a composite or cast metal housing that can be bolted to a machine wall or frame. In addition to being part of a unit, some flanged housings for insert bearings are available as separate components. The SKF assortment includes ball bearing units compliant with several industrial standards, meeting many requirements regarding bolt patterns and mechanisms for locking onto the shaft.
Strengths
- Ready to mount
- Lubricated and sealed bearings
- Quick locking on the shaft
- Large variety of housing shapes, housing materials, and locking methods
- Concentric locking options for high speeds and low vibration
- Lubricated and sealed bearings
- Quick locking on the shaft
- Large variety of housing shapes, housing materials, and locking methods
- Concentric locking options for high speeds and low vibration
Applications
For food and beverage applications
Technical specifications
Attributes
| Inner diameter | 31.75 mm |
|---|---|
| Width | 34.3 mm |
| Fixation centre-to-centre distance | 99 mm |
| Material | Stainless steel |
| Height | 62.4 mm |
| Length | 130 mm |
| Total bearing width | 31.2 mm |
| Diameter of fixation holes | 10 mm |
| Number of holes | 2 |
| Basic static load, radial - C0r | 11200 N |
| Basic dynamic load, radial - Cr | 16300 N |
Show UNSPSC/ECL@SS
£ 142.83 excl. VAT
/ Each
£ 171.40 incl. VAT
Usually arrives within 14 working days
