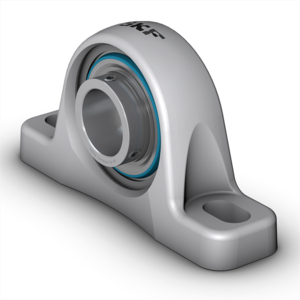

SKF P2BSS30M-YTPSS S/S FOOD LINE HOUSED UNIT WITH S/S INSERT
Ball Bearing Unit
References
skf:P2BSS 30M-YTPSS
rubix:200A1513
ean:07316577843586
Technical specifications
| Inner diameter | 30 mm |
|---|---|
| Fixation centre-to-centre distance | 117.5 mm |
| Shaft Height | 42.9 mm |
Product details : SKF P2BSS30M-YTPSS S/S FOOD LINE HOUSED UNIT WITH S/S INSERT
Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a stainless-steel housing. They have a good corrosion resistance, and are suitable for applications with both constant and alternating directions of rotation. They have an inner ring extended on both sides and are locked onto the shaft by tightening a set screw on the inner ring, making them easy to mount.
Strengths
- Ready to mount
- Designed for a constant and alternating rotation
- Good corrosion resistance
- Lubricated and sealed bearing
- Quick locking onto the shaft
- Designed for a constant and alternating rotation
- Good corrosion resistance
- Lubricated and sealed bearing
- Quick locking onto the shaft
Technical specifications
Attributes
| Inner diameter | 30 mm |
|---|---|
| Fixation centre-to-centre distance | 117.5 mm |
| Shaft Height | 42.9 mm |
| Material | Stainless steel |
| Height | 82 mm |
| Length | 152.5 mm |
| Total bearing width | 40 mm |
| Series | BlueRange |
| Number of holes | 2 |
| Basic static load, radial - C0r | 11200 N |
| Basic dynamic load, radial - Cr | 16300 N |
| Outer diameter | 62 mm |
| Width | 38.1 mm |
