KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The specially designed packing provides positive sealing under pressure without the reduced flow common with compression fittings. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.

Strengths

•Accepts nylon and urethane tubes
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1. 0MPa

Technical specifications

Attributes

Connection 1	4 mm
Length	27 mm
Connection 2	4 mm
Material	Brass
Min. temperature	0 °C
Max. temperature	60 °C
Type of fluid	Air;Water
Metric exterior tube diameter 2	4 mm

Show UNSPSC/ECL@SS

£ 3.62 ^{excl. VAT}

/ Each

£ 4.34 ^{incl. VAT}

Usually arrives within 14 working days

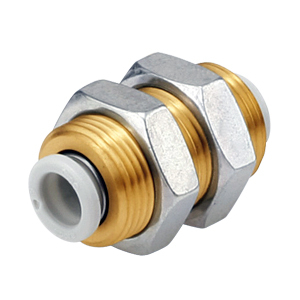

SMC KQ2E04-00A1 ONE-TOUCH FITTING
