Standard series
Wide range of variants: wide selection for maximum flexibility in standard applications
PBT and nickel-plated brass
Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/QS

Technical specifications

Attributes

Logistics dimensions (L x W x H)	30x20x19 mm
Logistic Weight	23,1 g
Connection 1	R 1/8 in
Connection 2	10 mm
Length	30.3 mm
Type of threading	Sheet metal
Max. temperature	80 °C
Min. temperature	-10 °C
Material	Nickel-Plated Brass (Housing);POM (Release Ring);NBR (Tubing Seal);High-Alloy Stainless Steel (Tubing Clamp Component)

Show UNSPSC/ECL@SS

£ 31.20 ^{excl. VAT}

/ 10 pieces

£ 37.44 ^{incl. VAT}

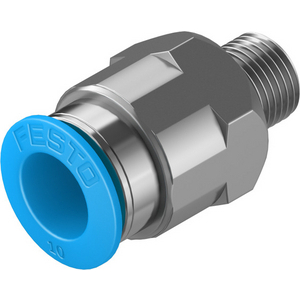

FESTO 190643 PUSH-IN FITTING QS-1/8-10
