Tsubaki BB Series clutches have 62** ball bearing characteristics and dimensions. This provides easy handling and installation. Ideal for general applicationsin the light duty industry.

Technical specifications

Attributes

Logistic Weight	574 g
Inner diameter	40 mm
Outer diameter	80 mm
Width	22 mm
Series	BB
Weight	0.574 kg
Reference speed	1800 rpm
Total bearing width	22 mm
Auth. torque	260 N.m
Standard	DIN 6885. 3
Basic static load, radial - C0r	11700 N
Basic dynamic load, radial - Cr	14500 N

Show UNSPSC/ECL@SS

£ 65.07 ^{excl. VAT}

/ Each

£ 78.08 ^{incl. VAT}

Usually arrives within 14 working days

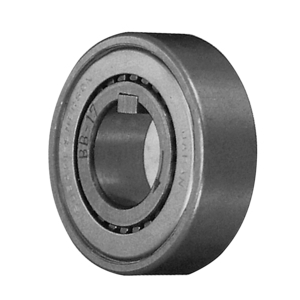

TSUBAKI 5014040010 BB40-1K-K CAM CLUTCH WITH KEYWAY

Product details : TSUBAKI 5014040010 BB40-1K-K CAM CLUTCH WITH KEYWAY
