SANDVIK T300-XM103DA-M14C110 COROTAP 300 CUTTING TAP 6539587

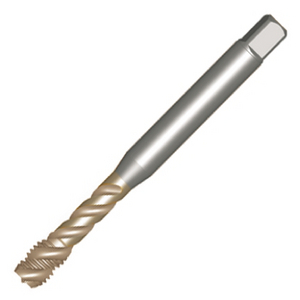

CoroTap™ 300 Helical Fluted Tapping Tool
See technical informationReferences
Sandvik Coromant:T300-XM103DA-M14C110
Rubix:242A9041
Manufacturer :6539587
Technical specifications
| Threading | m14x2 |
|---|---|
| Threading diameter | 14 mm |
| Type | metric blind bores |
Product details : SANDVIK T300-XM103DA-M14C110 COROTAP 300 CUTTING TAP 6539587
C110 CoroTap™ 300 cutting tap with spiral flutes is part of the CoroTap™ 300 product family. Spiral flute taps are the best option for blind holes. The flute transports the chips out of the hole and is also used for cutting fluid. There are different helix angles suitable for different applications.
CoroTap® 300, helical-fluted tapping tool
Strengths
Great flexibility and productivity plus lower tool inventory costs
A strong cutting head and shank interface provides high strength for roughing and high rigidity for finishing
High stiffness and low deflection make it possible to machine deep pockets with long overhang, as well as allowing high accuracy in finishing operations
Internal coolant on selected assortment delivers superior chip evacuation and a secure cutting process
A strong cutting head and shank interface provides high strength for roughing and high rigidity for finishing
High stiffness and low deflection make it possible to machine deep pockets with long overhang, as well as allowing high accuracy in finishing operations
Internal coolant on selected assortment delivers superior chip evacuation and a secure cutting process

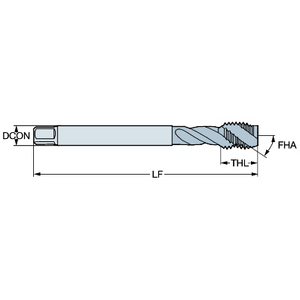

Technical specifications
Attributes
| Threading | m14x2 |
|---|---|
| Threading diameter | 14 mm |
| Type | metric blind bores |
| With cooling spray | no |
| Direction of threading | right |
| Drilling diameter | 12 mm |
| Tail diameter | 11 mm |
| Square drive adapter | 11 mm |
| Thread depth | 20 mm |
| Angle of helix | 45 ° |
| Coating | alcrn |
| Total length | 110 mm |
| Body material | hss / pm |
| Threading | m14x2 |
| No. of threads per inch | 12.7 |
| Tolerance | 6h |
Show UNSPSC/ECL@SS
£ 63.25 excl. VAT
/ Each
£ 75.90 incl. VAT
- Usually arrives within 14 working days
