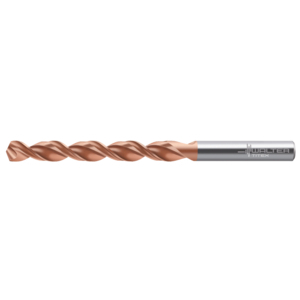

TITEX A1249XPL-3.6 DEEP HOLE DRILLS HSS-E TYPE UFL 5236540
Deep-Hole Drill
References
walter titex:A1249XPL-3.6
rubix:291A1626
manufacturer :5236540
ean:4031132265575
Technical specifications
| Drilling diameter | 3.6 mm |
|---|---|
| Total length | 70 mm |
| Length of cut | 33 mm |
Product details : TITEX A1249XPL-3.6 DEEP HOLE DRILLS HSS-E TYPE UFL 5236540
ALTIUS
Applications
Drilling (Through Hole);Blind Hole;Stack Drilling
Technical specifications
Attributes
| Drilling diameter | 3.6 mm |
|---|---|
| Total length | 70 mm |
| Length of cut | 33 mm |
| Din standard | DIN 338 |
| Coating | AlCrN |
| Tolerance | h8 |
| Direction of cutting | Right |
| Machining material | Steel;Stainless Steel;Cast Iron;Non-Ferrous Metal;Special Alloy;Others |
| Body material | HSS-E |
| Tip angle | 130 ° |
| Internal cooling | Yes |
| Tail diameter | 3.6 mm |
Show UNSPSC/ECL@SS
£ 12.42 excl. VAT
/ Each
£ 14.90 incl. VAT
Usually arrives within 14 working days
