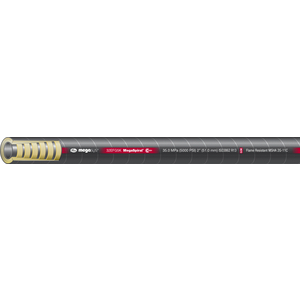

GATES HOSE 16EFG5K
EFG5K
References
gates:16EFG5K
rubix:119A7857
manufacturer :4651-1286
ean:5414465330988
Technical specifications
| Inner diameter | 25 mm |
|---|
Product details : GATES HOSE 16EFG5K
Strengths
CR base (chloroprene). MSHA release.
Applications
Hydraulic applications with extremely high pressures and high pulse loads.
Technical specifications
Attributes
| Logistic Weight | 2243 g |
|---|---|
| Inner diameter | 25 mm |
| Min. temperature | -40 °C |
| Max. temperature | 121 °C |
| Max. service pressure | 350 bar |
| Exterior diameter (inch) | 1,53 '' |
| Outer diameter | 38.7 mm |
| Material thickness | 6,85 mm |
| Bend radius | 150 mm |
| Material | CR/NBR/steel wire |
| No-burst pressure | 1400 bar |
Show UNSPSC/ECL@SS
£ 47.25 excl. VAT
/ Metre
£ 56.70 incl. VAT
Usually arrives within 14 working days
