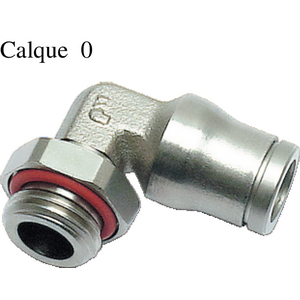

LEGRIS LF3600 BRASS FITTING 3699 08 10
Elbow Stud BSP Parallel Metric 3699
References
parker legris:3699 08 10
rubix:124A1387
ean:0820099287270
Technical specifications
| Connection 1 | G 1/8 |
|---|---|
| Connection 2 | 8 |
Product details : LEGRIS LF3600 BRASS FITTING 3699 08 10
Connection of tubing at a 90 degree angle to a threaded port
- solid construction and compact,
- external shapes easy to clean,
- components comply with FDA standard, and 1935/2004/EC regulation
- excellent resistance to corrosion,
- individual unit quality control and dating in order to guarantee quality and traceability,
- RoHS.
- solid construction and compact,
- external shapes easy to clean,
- components comply with FDA standard, and 1935/2004/EC regulation
- excellent resistance to corrosion,
- individual unit quality control and dating in order to guarantee quality and traceability,
- RoHS.
Strengths
• High Performance
• Resistant up to +150°C at 30 bar
• Excellent mechanical performance
• Long threads to resist shock and vibration
• Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
• Full flow, minimal pressure drop• Versatility
• Materials conform to FDA standards
• Spring collet gripping system suitable for both metal (grooved) and polymer tubing
• Excellent resistance to high pressure and vacuum
• Excellent chemical compatibility
• More than 250 part numbers
• One fitting for numerous applications: stock optimisation
• Manual connection and disconnection
• Compact and ergonomic• Reliability
• High performance brass for increased lifespan
• 100% leak-tested in production
• Date coding to guarantee quality and traceability
• Resistant up to +150°C at 30 bar
• Excellent mechanical performance
• Long threads to resist shock and vibration
• Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
• Full flow, minimal pressure drop• Versatility
• Materials conform to FDA standards
• Spring collet gripping system suitable for both metal (grooved) and polymer tubing
• Excellent resistance to high pressure and vacuum
• Excellent chemical compatibility
• More than 250 part numbers
• One fitting for numerous applications: stock optimisation
• Manual connection and disconnection
• Compact and ergonomic• Reliability
• High performance brass for increased lifespan
• 100% leak-tested in production
• Date coding to guarantee quality and traceability
Applications
• Food Process
• Coffee Machines
• In-Plant Automotive
• Medical Equipment
• Printing
• Misting
• Welding Robots
Technical specifications
Attributes
| Logistic Weight | 21 g |
|---|---|
| Package weight | 230 g |
| Connection 1 | G 1/8 |
| Connection 2 | 8 |
| Type of threading | BSPP |
| Max. temperature | 150 °C |
| Min. temperature | -20 °C |
| Material | Nickel plated brass |
| 60 mm | |
| 60 mm |
Show UNSPSC/ECL@SS
£ 6.26 excl. VAT
/ Each
£ 7.51 incl. VAT
In stock: Next day delivery
