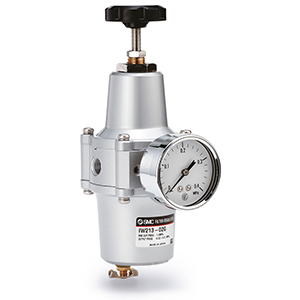

SMC IW213-02 PRECISION FILTER/REG (0.2-3BAR)
Filter Regulator
References
smc:IW213-02
rubix:114A3796
Product details : SMC IW213-02 PRECISION FILTER/REG (0.2-3BAR)
Filter regulator series IW prevents moisture and dust in the compressed air line while maintaining pressure at a stable level, in spite of variations of both air consumption and air source pressure.
•Aluminium filter regulator
•Nominal filtration rating 5 µm
•Port size 1/4.
Type of Setting: 1 (Adjustable Type, Handle)
Set Pressure: 3 (0.02 to 0.3MPa)
Port Size: 02 (1/4 PT)
Accessory: None
Suffix: None
•Nominal filtration rating 5 µm
•Port size 1/4.
Type of Setting: 1 (Adjustable Type, Handle)
Set Pressure: 3 (0.02 to 0.3MPa)
Port Size: 02 (1/4 PT)
Accessory: None
Suffix: None
Strengths
•two types are available: adjustable set pressure type and fixed set pressure type.
Low/High temperature and external parts copper-free types can be selected.
Pressure gauge connecting direction: 2 directions (Front/Back)
Low/High temperature and external parts copper-free types can be selected.
Pressure gauge connecting direction: 2 directions (Front/Back)
Technical specifications
Attributes
| Logistic Weight | 700 g |
|---|---|
| Filter fineness | 5 µm |
| Body size | 6.35 mm |
| Volume flow rate | 1 l/min |
Show UNSPSC/ECL@SS
£ 62.21 excl. VAT
/ Each
£ 74.65 incl. VAT
Delivery usually within ( 4 ) days
