INA RME-20-XL-N HOUSED UNIT
Flanged housing unit
References
ina:RME20-XL-N
rubix:208A8961
manufacturer :0096429350000
ean:4012802837957
Technical specifications
| Inner diameter | 20 mm |
|---|---|
| Width | 43.7 mm |
| Fixation centre-to-centre distance | 78 mm |
Product details : INA RME-20-XL-N HOUSED UNIT

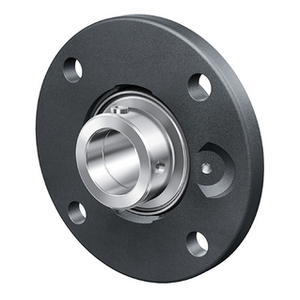

Housing units RME, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, R seals
Technical specifications
Attributes
| Inner diameter | 20 mm |
|---|---|
| Width | 43.7 mm |
| Fixation centre-to-centre distance | 78 mm |
| Material | Cast Iron |
| Height | 100 mm |
| Length | 100 mm |
| Series | RME..-XL-N |
| Total bearing width | 43.7 mm |
| Diameter of fixation holes | 9 mm |
| Number of holes | 4 |
| Basic static load, radial - C0r | 6600 N |
| Basic dynamic load, radial - Cr | 13600 N |
| Outer diameter | 100 mm |
