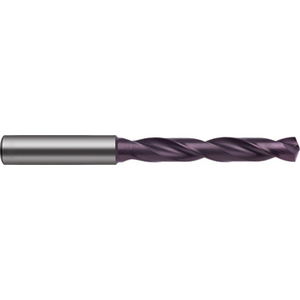

GUHRING 05515 004.370 RATIO DRILL SOLID CARBIDE 4.370MM
Helicoidal carbide solid drill bit Gühring
References
gühring:05515 004.370
rubix:222A3708
Technical specifications
| Drilling diameter | 4.37 mm |
|---|---|
| Total length | 74 mm |
| Length of cut | 36 mm |
Product details : GUHRING 05515 004.370 RATIO DRILL SOLID CARBIDE 4.370MM
Guhring Number 5515
5xD Cylindrical shank
Solid Carbide Non-Oil feed drill
Futura coated ideally suited for drilling of most ferrous and non-ferrous materials
From 3-20mm
Technical specifications
Attributes
| Drilling diameter | 4.37 mm |
|---|---|
| Total length | 74 mm |
| Length of cut | 36 mm |
| Din standard | DIN 6537;DIN 6537L |
| Angle of helix | 140 ° |
| Tolerance | m7 |
| Ratio of diameter to length of drill hole | 4,37/74 mm |
| Direction of cutting | Right |
| Tail diameter | 6 mm |
| Coating | Nano FIREX |
| Tail | Straight |
| Tip angle | 140 ° |
| Machining material | Steel;Stainless Steel;Cast Iron;Aluminium;Titanium Alloys;Hardened Steel |
| Internal cooling | No |
Show UNSPSC/ECL@SS
£ 37.59 excl. VAT
/ Each
£ 45.11 incl. VAT
Usually arrives within 14 working days
