SKF SPHERICAL ROLLER BEARING 23980CC/W33
Spherical roller bearing SKF
References
skf:23980 CC/W33
rubix:104A5908
manufacturer :167345
ean:7316571869971
Technical specifications
| Inner diameter | 400 mm |
|---|---|
| Outer diameter | 540 mm |
| Width | 106 mm |
Product details : SKF SPHERICAL ROLLER BEARING 23980CC/W33

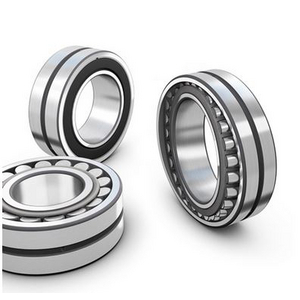

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 106x540x540 mm |
|---|---|
| Logistic Weight | 68200 g |
| Inner diameter | 400 mm |
| Outer diameter | 540 mm |
| Width | 106 mm |
| Bearing Clearance | CN |
| Series | 239C |
| Reference speed | 1100 rpm |
| Limit speed | 1200 rpm |
| Basic static load, radial - C0r | 3900000 N |
| Basic dynamic load, radial - Cr | 1730000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 4,141.65 excl. VAT
/ Each
£ 4,969.98 incl. VAT
In stock: Next day delivery
