SKF SPHERICAL ROLLER BEARING 23260CC/W33
Spherical roller bearing SKF
References
skf:23260 CC/W33
rubix:104A5412
manufacturer :160283
ean:7316571781914

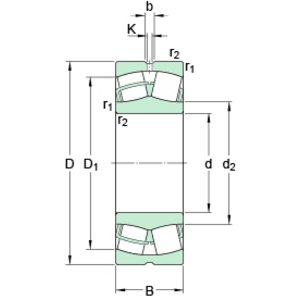

Technical specifications
| Inner diameter | 300 mm |
|---|---|
| Outer diameter | 540 mm |
| Width | 192 mm |
Product details : SKF SPHERICAL ROLLER BEARING 23260CC/W33

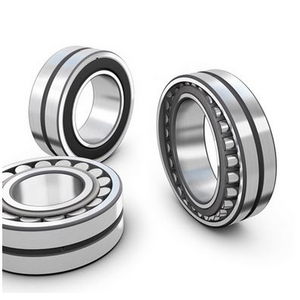

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 192x540x540 mm |
|---|---|
| Logistic Weight | 189200 g |
| Inner diameter | 300 mm |
| Outer diameter | 540 mm |
| Width | 192 mm |
| Bearing Clearance | CN |
| Series | 232C |
| Reference speed | 750 rpm |
| Limit speed | 1000 rpm |
| Basic static load, radial - C0r | 5850000 N |
| Basic dynamic load, radial - Cr | 3340000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 7,036.97 excl. VAT
/ Each
£ 8,444.36 incl. VAT
Usually arrives within 14 working days
