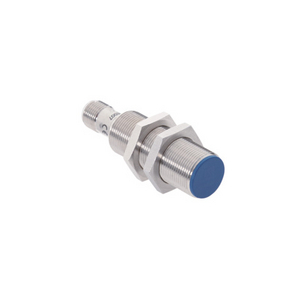

WENGLOR SENSOR I18H008

Inductive Sensor

See technical informationSee documents
References
Wenglor:I18H008
Rubix:113A7167
brand logo
Technical specifications
Typeinductive sensor
Voltage30 V
Min. tension10 V
See all Specifications
Documents

Product details : WENGLOR SENSOR I18H008


Inductive Sensors with increased switching distances are distinguished by rugged design, easy installation and reliable measured values. The large range makes additional types of sensor superfluous because they can also be used to implement special applications. In addition to error-free operation of several sensors in a very small space, the new generation also provides the possibility of detecting system errors before it's too late thanks to ASIC and wenglor weproTec.

Strengths

•Increased switching distance
Minimal mounting clearance thanks to wenglor weproTec
Innovative ASIC circuit technology
Integrated error display

Technical specifications


Attributes
Typeinductive sensor
Voltage30 V
Min. tension10 V
Max. tension30 V
Materialnickel-plated cuzn
Displayintegrated error display
Min. temperature-40 °C
Max. temperature80 °C
Seriesinductive sensors with increased switching distances
Size of threadm18 x 1
Show UNSPSC/ECL@SS
£ 114.53 excl. VAT
/ Each
£ 137.44 incl. VAT
  • Usually arrives within 14 working days
