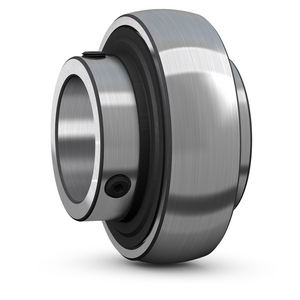

Insert bearing with set screw SKF YAR 209-2F/W64, Outer diameter: 85 mm | Inner diameter: 45 mm | Width: 49.2 mm

Insert Bearing

See technical information

References

SKF:YAR 209-2F/W64
Rubix:237A4404
Manufacturer :144155
EAN:07316571656670
brand logo

Technical specifications

Inner diameter45 mm
Outer diameter85 mm
Width49.2 mm
See all Specifications

Product details : SKF YAR 209-2F/W64 BALL BEARING UNIT - SOLID OIL

Radial insert ball bearings are based on sealed deep groove ball bearings. This design is suitable for applications with constant and alternating directions of rotation. The inner ring, which is wider on both sides, is fastened to the shaft by tightening two fastening screws, making it easy to install.
Y-bearing with set screws SKF

Strengths

  • Designed for constant and alternating rotary movements
  • Quick and easy mounting on the shaft
  • Absorption of installation-related misalignments
  • Long service life
  • Reduced noise and vibration level

Applications

Food and beverage industry

Technical specifications

Attributes
Logistic Weight657 g
Inner diameter45 mm
Outer diameter85 mm
Width49.2 mm
Bearing Clearancecn
Sealingtwo rubber seals
Seriesyar
Materialsteel
Cagepolyamide
Reaming45 mm
Limit speed4900 rpm
Total bearing width49.2 mm
Basic static load, radial - C0r21600 N
Basic dynamic load, radial - Cr33200 N
Weight0.657 kg
£ 321.69 excl. VAT
/ Each
£ 386.03 incl. VAT
  • Usually arrives within 14 working days
