Other insert bearing SNR CS205, Outer diameter: 52 mm | Inner diameter: 25 mm | Width: 15 mm

Insert Bearing

See technical information

References

SNR:CS205
Rubix:205A2047
EAN:3413520802202
brand logo
brand logo
brand logo
brand logo

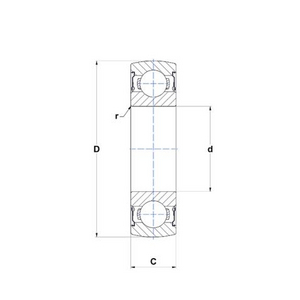

Technical specifications

Inner diameter25 mm
Outer diameter52 mm
Width15 mm
See all Specifications

Product details : SNR CS205 INSERT BEARING

Insert bearings for self-aligning housings are offered with various support options for easier assembly.

Technical specifications

Attributes
Inner diameter25 mm
Outer diameter52 mm
Width15 mm
Bearing Clearancec3
Materialchrome steel
Basic static load, radial - C0r7880 N
Basic dynamic load, radial - Cr14000 N
Mounting typinterference fit
Weight0.11 kg
Lubricationgreased for life; without relubrication facility
£ 7.33 excl. VAT
/ Each
£ 8.80 incl. VAT
  • Usually arrives within 14 working days
