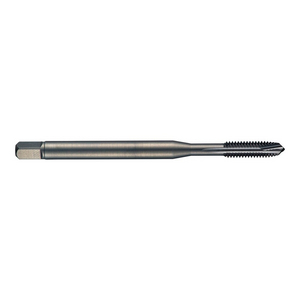

DORMER EP01M2 SPIRAL POINT TAP M2 X 0.40 MM 5973473
M Machine Tap Spiral Point
References
dormer:EP01M2
rubix:2008168
ean:7320760137253
Technical specifications
| Threading diameter | 2 mm |
|---|---|
| Total length | 50 mm |
| Body material | HSS-E |
Product details : DORMER EP01M2 SPIRAL POINT TAP M2 X 0.40 MM 5973473
HSS-E Machine tap for metric thread steam-tempered DIN 371 form B cut 2.5xD continual holes for steel <1200 N/mm². Stainless steel and cast iron.
Strengths
Metric sizes M2 to M30
Spiral point for through holes
2.5xD
Manufactured to DIN 371 < 10.00mm and DIN 376 > 12.00mm
Steam tempered
Tolerance 6H
Spiral point for through holes
2.5xD
Manufactured to DIN 371 < 10.00mm and DIN 376 > 12.00mm
Steam tempered
Tolerance 6H
Applications
Machining steel soft steel (<120 HB <400 N/mm²)
Construction steel carburised steel (<200 HB <700 N/mm²)
Carbon steel (<250 HB <850 N/mm²)
Alloyed steel (<250 HB <850 N/mm²)
Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
Construction steel carburised steel (<200 HB <700 N/mm²)
Carbon steel (<250 HB <850 N/mm²)
Alloyed steel (<250 HB <850 N/mm²)
Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
Technical specifications
Attributes
| Threading diameter | 2 mm |
|---|---|
| Total length | 50 mm |
| Body material | HSS-E |
| Coating | Steam Tempered |
| Tolerance | 6H |
| Square drive adapter | 2.1 mm |
| Direction of threading | Right |
Show UNSPSC/ECL@SS
£ 24.93 excl. VAT
/ Each
£ 29.92 incl. VAT
Usually arrives within 14 working days
