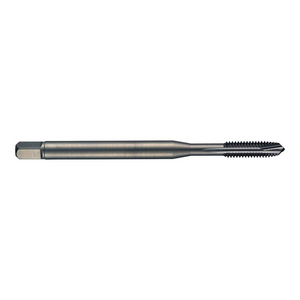

DORMER EP01M8 SPIRAL POINT TAP M8 X 1.25 MM 5973448
M Machine Tap Spiral Point
References
dormer:EP01M8
rubix:2008185
manufacturer :5973448
ean:7320760136225
Technical specifications
| Threading | m8 |
|---|---|
| Threading diameter | 8 mm |
| Thread | 1.25 mm |
Product details : DORMER EP01M8 SPIRAL POINT TAP M8 X 1.25 MM 5973448
HSS-E Machine tap for metric thread steam-tempered DIN 371 form B cut 2.5xD continual holes for steel <1200 N/mm². Stainless steel and cast iron.
Tap MACH SPECTRUM M 8 EP01 DIN COUPE GUN ST 6H
Strengths
Metric sizes M2 to M30
Spiral point for through holes
2.5xD
Manufactured to DIN 371 < 10.00mm and DIN 376 > 12.00mm
Steam tempered
Tolerance 6H
Spiral point for through holes
2.5xD
Manufactured to DIN 371 < 10.00mm and DIN 376 > 12.00mm
Steam tempered
Tolerance 6H
Applications
Machining steel soft steel (<120 HB <400 N/mm²)
Construction steel carburised steel (<200 HB <700 N/mm²)
Carbon steel (<250 HB <850 N/mm²)
Alloyed steel (<250 HB <850 N/mm²)
Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
Construction steel carburised steel (<200 HB <700 N/mm²)
Carbon steel (<250 HB <850 N/mm²)
Alloyed steel (<250 HB <850 N/mm²)
Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
Technical specifications
Attributes
| Threading | m8 |
|---|---|
| Threading diameter | 8 mm |
| Thread | 1.25 mm |
| Total length | 90 mm |
| Body material | hss-e |
| Coating | steam tempered |
| Tolerance | 6h |
| Drilling diameter | 8 mm |
| Tail diameter | 8 mm |
| Square drive adapter | 6.2 mm |
| Direction of threading | right |
| Input | 8 mm |
| Material | hss-e |
| Din standard | din 371 |
| Thread depth | 18 mm |
| Capacity length | 18 mm |
Show UNSPSC/ECL@SS
£ 22.20 excl. VAT
/ Each
£ 26.64 incl. VAT
Usually arrives within 14 working days
