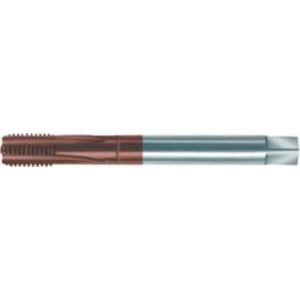

GUHRING 01201 008.000 MACHINE TAPS 9012010080000
Machine taps for ISO metric screw threads type 1201
See technical informationReferences
Gühring:1201 8.000
Rubix:336A8302
Manufacturer :9012010080000
EAN:4031093775151
Technical specifications
| Threading diameter | 8 mm |
|---|---|
| Thread | 1.25 mm |
| Body material | hss-e / pm |
Product details : GUHRING 01201 008.000 MACHINE TAPS 9012010080000

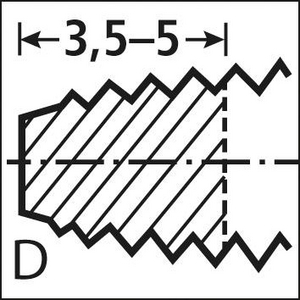

Design: Tolerance range ISO 6HX, type H, with spiral point form D (6-7 threads).
Application: For regular metric threads according to ISO DIN 13. Particularly suitable for annealed steels up to 55 HRC.
Note: HSS-E PM is distinguished by its high resilience (stronger edge stability, wear resistance) and a higher tool life.
Application: For regular metric threads according to ISO DIN 13. Particularly suitable for annealed steels up to 55 HRC.
Note: HSS-E PM is distinguished by its high resilience (stronger edge stability, wear resistance) and a higher tool life.

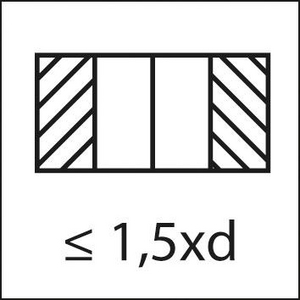

Through hole machine tap
Design: Tolerance range ISO 6HX, type H, with spiral point form D (6-7 threads).
Application: For regular metric threads according to DIN 13. Particularly suitable for annealed steels up to 55 HRC.
Note: HSS-E PM is distinguished by its high resilience (stronger edge stability, wear resistance) and a higher tool life.
Design: Tolerance range ISO 6HX, type H, with spiral point form D (6-7 threads).
Application: For regular metric threads according to DIN 13. Particularly suitable for annealed steels up to 55 HRC.
Note: HSS-E PM is distinguished by its high resilience (stronger edge stability, wear resistance) and a higher tool life.
Technical specifications
Attributes
| Threading diameter | 8 mm |
|---|---|
| Thread | 1.25 mm |
| Body material | hss-e / pm |
| Coating | ticn |
| Tolerance | 6hx |
| Threading | m8 |
| Total length | 90 mm |
| Drilling diameter | 6.9 mm |
| Tail diameter | 8 mm |
| Square drive adapter | 6.2 mm |
| Direction of threading | right |
| Input | spiral point (gun), form d (6-7 threads) |
| Din standard | din 371/din 2184-1 |
| Thread depth | 18 mm |
| Capacity length | 18 mm |
Show UNSPSC/ECL@SS
£ 60.75 excl. VAT
/ Each
£ 72.90 incl. VAT
- Usually arrives within 14 working days
