DORMER E255M16 SPIRAL POINT TAP M16 X 2.00 MM 6554489

Machine thread-cutters E255

See technical information

References

Dormer:E255M16
Rubix:2557090
EAN:7320760674321

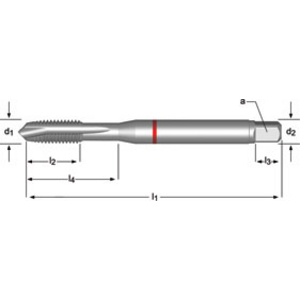

Machine tap M16 DIN 376
Machine tap M16 DIN 376
Machine tap M16 DIN 376

Technical specifications

Threadingm16 x 2,00 (din 371/376), 6h
Threading diameter16 mm
Typemetric through-bores
See all Specifications

Product details : DORMER E255M16 SPIRAL POINT TAP M16 X 2.00 MM 6554489

HSS-E Machine thread-cutter for metric thread SHARK red ring uncoated DIN 376 shape B cut 2.5xD continuous holes for alloyed steel <850 N/mm².

Applications

• Alloyed steel (<250 HB <850 N/mm²)

Technical specifications

Attributes
Threadingm16 x 2,00 (din 371/376), 6h
Threading diameter16 mm
Typemetric through-bores
With cooling sprayno
Direction of threadingright
Drilling diameter14 mm
Tail diameter12 mm
Square drive adapter9 mm
Thread depth25 mm
Angle of helix45 °
Coatingblank
Total length110 mm
Body materialhss-e / pm
£ 59.88 excl. VAT
/ Each
£ 71.86 incl. VAT
  • Usually arrives within 14 working days
