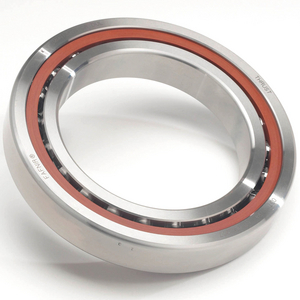

TIMKEN 3MM9134WICRSUL SPINDLE BALL BEARING

Precision / Spindle bearing Timken 3MM9134WICRSUL, Inner diameter: 170 mm | Outer diameter: 260 mm | Width: 42 mm

Machine Tool Spindle Ball Bearing

See technical information
References
Timken:3MM9134WICRSUL
Rubix:397A4017
EAN:0087796344679
brand logo
Technical specifications
Inner diameter170 mm
Outer diameter260 mm
Width42 mm
See all Specifications

Product details : TIMKEN 3MM9134WICRSUL SPINDLE BALL BEARING

Spindle bearing Fafnir

Technical specifications

Attributes
Inner diameter170 mm
Outer diameter260 mm
Width42 mm
Sealingopen
Seriesfafnir® spindle angular contact (wi series)
Materialsteel
Cagephenolic resin
Weight6.999 kg
Precisioniso p4s (abec 7/9)
Basic static load, radial - C0r232600 N
Basic dynamic load, radial - Cr221000 N
Show UNSPSC/ECL@SS
£ 1,639.65 excl. VAT
/ Each
£ 1,967.58 incl. VAT
  • Usually arrives within 14 working days
