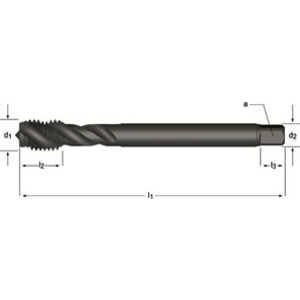

DORMER EX11M5X.50 TAP M5 X 0.50 MM 5973652
MF Machine Tap Spiral Flute 45°
References
dormer:EX11M5X.50
rubix:2019328
ean:7320760149973
Technical specifications
| Threading diameter | 5 mm |
|---|---|
| Angle of helix | 45 ° |
| Total length | 70 mm |
Product details : DORMER EX11M5X.50 TAP M5 X 0.50 MM 5973652
HSS-E Machine thread cutter for fine metric thread steam-tempered DIN 374 form C 45° spiralised 2.5xD blind holes for steel <1200 N/mm². Stainless steel and cast iron.
Strengths
Premium substrate with Steam Oxide surface treatment reduces wear and prevents chip welding in abrasive or harder ferrous materials
Applications
Machining steel soft steel (<120 HB <400 N/mm²)
Construction steel carburised steel (<200 HB <700 N/mm²)
Carbon steel (<250 HB <850 N/mm²)
Alloyed steel (<250 HB <850 N/mm²)
alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
stainless machining steel (<250 HB <850 N/mm²)
stainless steel - austenitic (<320 HB <1100 N/mm²)
Construction steel carburised steel (<200 HB <700 N/mm²)
Carbon steel (<250 HB <850 N/mm²)
Alloyed steel (<250 HB <850 N/mm²)
alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
stainless machining steel (<250 HB <850 N/mm²)
stainless steel - austenitic (<320 HB <1100 N/mm²)
Technical specifications
Attributes
| Threading diameter | 5 mm |
|---|---|
| Angle of helix | 45 ° |
| Total length | 70 mm |
| Body material | HSS-E |
| Type | Metric blind bores |
| With cooling spray | No |
| Drilling diameter | 4.5 mm |
| Square drive adapter | 3.5 mm |
| Coating | Steam Tempered |
Show UNSPSC/ECL@SS
£ 34.97 excl. VAT
/ Each
£ 41.96 incl. VAT
Usually arrives within 14 working days
