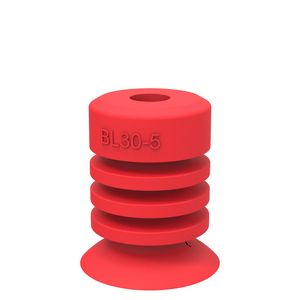

PIAB 0121519 SUCTION CUP BL30-5.20
Multibellows suction cups BL-5 Silicone
See technical informationSee documentsReferences
Piab:0121519
Rubix:234A4933
Manufacturer :0121519
Documents
Product details : PIAB 0121519 SUCTION CUP BL30-5.20
Optimized for handling bags with liquid, viscous contents and frozen food. Can also be used for the same applications as for short bellows but can cope with greater differences in levels due to the longer lifting movement. Not suitable for use with deep vacuum levels. Can be equipped with reinforcement rings of polyamide to give extra stability.
Strengths
High initial flow, with re-enforced bellows and long, thin lip
Suitable for handling difficult-to-handle bags, e.g., bags filled with liquid, frozen food, and for heavy bags
Suitable working temperature is -40–200 °C
Suitable for level compensation
Applications
Bags, sacks and bundles;Bag and pouch handling
Technical specifications
Attributes
| Material | silicone (sil) |
|---|---|
| Diameter | 30 mm |
| Shape | bellow |
| Type | without fittings |
Show UNSPSC/ECL@SS
£ 23.10 excl. VAT
/ Each
£ 27.72 incl. VAT
- In stock: Next day delivery
