Precision / Spindle bearing NTN 7910UADG/GNP42U3G, Inner diameter: 50 mm | Outer diameter: 72 mm | Width: 12 mm

NTN - Precision ball bearings - 7900UADG/GLP42U3G

See technical informationSee documents

References

NTN:7910UADG/GNP42U3G
Rubix:394A5467
EAN:4547359874822
brand logo

Technical specifications

Inner diameter50 mm
Outer diameter72 mm
Width12 mm
See all Specifications

Documents

Product details : NTN 7910UADG/GNP42 PRECISION BALL BEARINGS

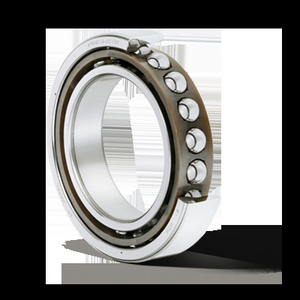

High precision angular contact ball bearing, laminated resin cage centred on outer ring

Technical specifications

Attributes
Logistics dimensions (L x W x H)72x72x12 mm
Logistic Weight130 g
Inner diameter50 mm
Outer diameter72 mm
Width12 mm
Sealingopen
Seriesmto7900
Materialsteel
Cagepolyamide
Basic static load, radial - C0r15800 N
Basic dynamic load, radial - Cr17900 N
£ 108.65 excl. VAT
/ Each
£ 130.38 incl. VAT
  • Usually arrives within 14 working days
