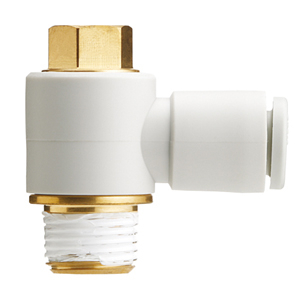

SMC KQ2V06-02NS ONE-TOUCH FITTING
One-Touch Fitting Series KQ2
References
smc:KQ2V06-02NS
rubix:393A7600
Product details : SMC KQ2V06-02NS ONE-TOUCH FITTING
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Technical specifications
Attributes
| Logistic Weight | 26 g |
|---|---|
| Connection 2 | 6 |
| Length | 28 mm |
| Max. temperature | 60 °C |
| Min. temperature | -5 °C |
| Material | Electroless Nickel-Plated Brass |
Show UNSPSC/ECL@SS
£ 3.42 excl. VAT
/ Each
£ 4.10 incl. VAT
Usually arrives within 14 working days
