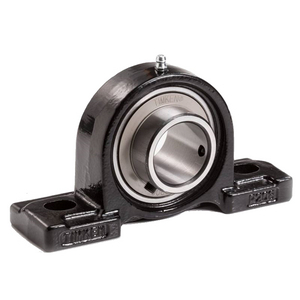

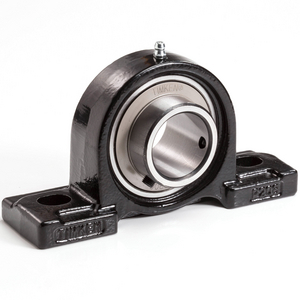

TIMKEN UCP208 PILLOW BLOCK WITH SET SCREWS
Pillow Block Housed Unit
References
timken:UCP208
rubix:211A4608
ean:0087796072046
Technical specifications
| Inner diameter | 40 mm |
|---|---|
| Fixation centre-to-centre distance | 137 mm |
| Shaft Height | 49.2 mm |
Product details : TIMKEN UCP208 PILLOW BLOCK WITH SET SCREWS
Strengths
•UCP Pillow Blocks are Suggested for Industrial Applications Where Normal Loads are Encountered
Compact, One-Piece Housing with Two-Bolt Mounting can be Installed in Any Position and Makes Bearing Replacement Easy
These Units Use Wide Inner Ring Ball Bearings with Self-Aligning Spherical Outside Diameters That Compensate for Shaft Misalignment
Timken Ucp Series Housed Units Feature the Timken Set Screw Locking (UC) Bearing Insert
Bearing Pre-lubricated and Ready for Immediate Installation
Grease Fitting Supplied for Re-lubrication(1)
The Bonded Seal Design Is Well-Suited for Applications Involving Wet or Dirty Environments
Bolt-Hole Spacing and Base-To-Center Height Dimensions are Interchangeable with Competitive Units
Housing Designed for Ease of Bearing Replacement
Compact, One-Piece Housing with Two-Bolt Mounting can be Installed in Any Position and Makes Bearing Replacement Easy
These Units Use Wide Inner Ring Ball Bearings with Self-Aligning Spherical Outside Diameters That Compensate for Shaft Misalignment
Timken Ucp Series Housed Units Feature the Timken Set Screw Locking (UC) Bearing Insert
Bearing Pre-lubricated and Ready for Immediate Installation
Grease Fitting Supplied for Re-lubrication(1)
The Bonded Seal Design Is Well-Suited for Applications Involving Wet or Dirty Environments
Bolt-Hole Spacing and Base-To-Center Height Dimensions are Interchangeable with Competitive Units
Housing Designed for Ease of Bearing Replacement
Technical specifications
Attributes
| Inner diameter | 40 mm |
|---|---|
| Fixation centre-to-centre distance | 137 mm |
| Shaft Height | 49.2 mm |
| Material | Cast Iron |
| Height | 98 mm |
| Length | 184 mm |
| Total bearing width | 54 mm |
| Series | UCP |
| Number of holes | 2 |
| Basic static load, radial - C0r | 17800 N |
| Basic dynamic load, radial - Cr | 29100 N |
| Width | 54 mm |
Show UNSPSC/ECL@SS
£ 67.56 excl. VAT
/ Each
£ 81.07 incl. VAT
Usually arrives within 14 working days
