References
INA:RASE40-TV-VA-FD
Rubix:274A8295
Manufacturer :0970784330000
EAN:4064327628718
Technical specifications
| Inner diameter | 40 mm |
|---|---|
| Fixation centre-to-centre distance | 137 mm |
| Shaft Height | 49.2 mm |

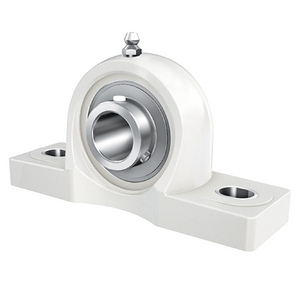

Product details : INA RASE40-TV-VA-FD PLUMMER BLOCK HOUSING UNIT
Plummer block housing units, FD design
Technical specifications
Attributes
| Inner diameter | 40 mm |
|---|---|
| Fixation centre-to-centre distance | 137 mm |
| Shaft Height | 49.2 mm |
| Material | plastic housing (ase08-tv-wht); stainless steel insert bearing (va) |
| Total bearing width | 43.7 mm |
| Outer diameter | 184 mm |
| Diameter of fixation holes | 18 mm |
| Mounting typ | foot-mounted, long-base (fd design) |
| Height | 98 mm |
| Length | 184 mm |
| Sealing | end cap and open protecting cap (optional) |
| Lubrication | food-compatible grease fill; lubrication connection thread 1/4'-28 unf |
| Series | rase..-tv-va-fd |
| Weight | 0.99 kg |
| Number of holes | 2 |
| Basic static load, radial - C0r | 5400 N |
| Basic dynamic load, radial - Cr | 11100 N |
| Width | 184 mm |
