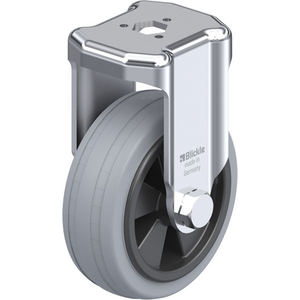

BLICKLE BKRA-VPA80G CASTOR
Pressed steel swivel castor, with top plate fitting, with brake system 'stop-top' Heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, non-marking, blue
References
blickle:BKRA-VPA 80G
rubix:210A3520
manufacturer :310854
ean:4047526310851
Technical specifications
| Load capacity | 80 kg |
|---|---|
| Wheel diameter | 80 mm |
| Wheel width | 25 mm |
Product details : BLICKLE BKRA-VPA80G CASTOR
Bracket: LE series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: POEV series
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour blue, non-marking
- wheel centre: high-quality nylon 6, impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 299 g |
|---|---|
| Load capacity | 80 kg |
| Wheel diameter | 80 mm |
| Wheel width | 25 mm |
| Wheel housing/rim material | Polyamide |
| Running sole/tire material | Rubber |
| Min. temperature | -20 °C |
| Max. temperature | 60 °C |
| Total height | 108 mm |
| Type of bearing | Plain bore |
| Running sole / tire colour | Grey |
| Shore A Hardness | 80 Shore |
| 108 mm | |
| 25 mm |
Show UNSPSC/ECL@SS
£ 11.90 excl. VAT
/ Each
£ 14.28 incl. VAT
Usually arrives within 14 working days
