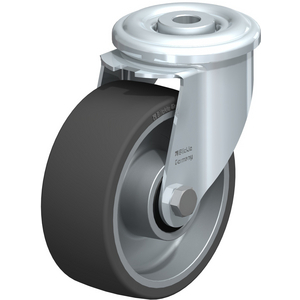

BLICKLE LIR-ALSI 100G 754715
Pressed steel swivel castor, with bolt hole, heat-resistant Blickle TempLine® Comfort wheel, with silicone rubber tread, with aluminium wheel centre, heat-resistant
References
blickle:LIR-ALSI 100G
rubix:156A1966
manufacturer :754715
ean:4047526101466
Technical specifications
| Load capacity | 100 kg |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 40 mm |
Product details : BLICKLE LIR-ALSI 100G 754715
Bracket: LIR series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- smooth rolling characteristic and low wear, increased service life
- swivel head play is set specifically for high-temperature applications
- highly heat-resistant grease
Wheel: ALSI series
- Tread: highly heat-resistant silicone rubber, hardness 75 Shore A, colour black, non-marking
- wheel centre: die-cast aluminium
- operating temperature: -25 °C to +250 °C
- chemical resistance to many aggressive substances
- operating temperature: -25 °C to +250 °C
- oven temperature temporarily up to +300 °C, wheel temperature must not exceed +250 °C
Technical specifications
Attributes
| Logistic Weight | 829 g |
|---|---|
| Load capacity | 100 kg |
| Wheel diameter | 100 mm |
| Wheel width | 40 mm |
| Wheel housing/rim material | Aluminium |
| Running sole/tire material | Polyurethane |
| Min. temperature | -25 °C |
| Max. temperature | 250 °C |
| Type of bearing | Plain bore |
| Running sole / tire colour | Black |
| 125 mm | |
| 40 mm |
Show UNSPSC/ECL@SS
£ 54.17 excl. VAT
/ Each
£ 65.00 incl. VAT
Usually arrives within 14 working days
