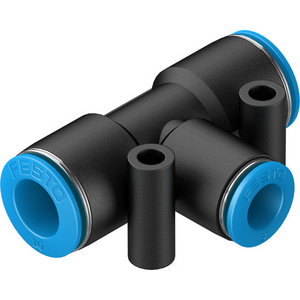

FESTO 153136 PUSH-IN T-CONNECTOR QST-10-8
Push-in T-Connector
References
festo:QST-10-8
rubix:115A9837
manufacturer :153136
ean:4052568032289
Technical specifications
| Material | Nickel-Plated Brass, PBT, Anodised Aluminium (Housing);Nickel-Plated Brass (Screwed Trunnion, Nut, Hollow Bolt);POM (Releasing Ring);NBR (Tubing Seal);High-alloy Stainless Steel (Tube Clamping Segment);PUN-H, PEN, PAN (Plastic Tubing) |
|---|---|
| Connection 1 | 10 mm |
Product details : FESTO 153136 PUSH-IN T-CONNECTOR QST-10-8
Push-in T connector QST-10-6 Reducing. Size=Standard, Nominal size=3,7 mm, Assembly Position=Any, Container size=10, Design structure=Push/pull principle
Technical specifications
Attributes
| Logistic Weight | 21,8 g |
|---|---|
| Material | Nickel-Plated Brass, PBT, Anodised Aluminium (Housing);Nickel-Plated Brass (Screwed Trunnion, Nut, Hollow Bolt);POM (Releasing Ring);NBR (Tubing Seal);High-alloy Stainless Steel (Tube Clamping Segment);PUN-H, PEN, PAN (Plastic Tubing) |
| Connection 1 | 10 mm |
| Profile | QST |
| Connection 2 | 8 mm |
| Min. temperature | -10 °C |
| Max. temperature | 80 °C |
Show UNSPSC/ECL@SS
£ 5.87 excl. VAT
/ Each
£ 7.04 incl. VAT
In stock: Next day delivery
