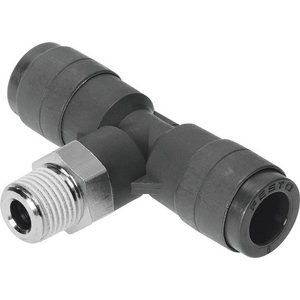

FESTO 160532 PUSH-IN T-FITTING QST-V0-1/2-12
Push-In T-Fitting
References
festo:QST-V0-1/2-12
rubix:124A7971
manufacturer :160532
ean:4052568035815
Technical specifications
| Material | Brass (Screwed Trunnion);PBT-Reinforced (Housing) |
|---|---|
| Connection 1 | R 1/2 |
Product details : FESTO 160532 PUSH-IN T-FITTING QST-V0-1/2-12
Push-in T-fitting QST-V0-1/2-12 360° orientable, male thread with external Hexagon. Nominal size=7,7 mm, Type of seal on screw-in stud=coating, Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 - 10 bar, Operating medium=(* Compressed Air in accordance with ISO8573-1:2010 [7:-:-], * Water as per manufacturer's declaration at www.festo.com)
Technical specifications
Attributes
| Logistic Weight | 83,01 g |
|---|---|
| Material | Brass (Screwed Trunnion);PBT-Reinforced (Housing) |
| Connection 1 | R 1/2 |
| Profile | Standard |
| Connection 2 | 12 |
Show UNSPSC/ECL@SS
