MECALINE coupling enable connection and disconnection in complete safety, via a pressurisation mechanism that guarantees disconnection with no rick of hose-whip. These safety couplings are compliant with the standards ISO 4414 -DIN EN 983 -ISO 6150 Series C (Ø 5.5 mm flow Passage). Material: Reinforced Polymeric body. Flow: 883 l/min at 6 bar with Delta P 10%. Max working pressure: 12 bars . Temperature: -15°C to + 70°C

Technical specifications

Attributes

Connection 1	G1/4
Material	Reinforced Polymer Body
Standard	ISO C10
Metric passage diameter	6 mm
Max. temperature	70 °C
Min. temperature	-15 °C

Show UNSPSC/ECL@SS

£ 36.69 ^{excl. VAT}

/ Each

£ 44.03 ^{incl. VAT}

In stock: Next day delivery

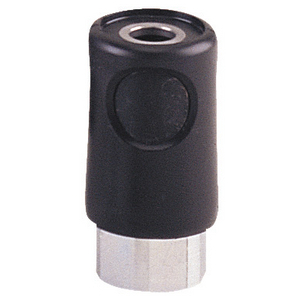

MECALINE COUPLINGS ISO C10 FEMALE 1/4 736002

Product details : MECALINE COUPLINGS ISO C10 FEMALE 1/4 736002
