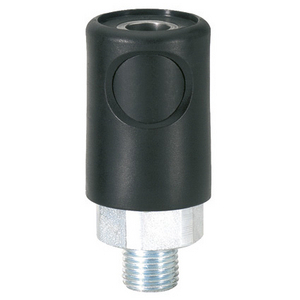

MECALINE COUPLINGS ISO C10 MALE 3/8 736007
QUICK SAFETY COUPLINGS WITH RELEASE BUTTON - ISO C - MALE
References
mecaline:736007
rubix:216A3146
ean:3660338021558
Technical specifications
| Connection 1 | G38 |
|---|---|
| Material | Reinforced Polymer Body |
| Standard | ISO C10 |
Product details : MECALINE COUPLINGS ISO C10 MALE 3/8 736007
MECALINE coupling enable connection and disconnection in complete safety, via a pressurisation mechanism that guarantees disconnection with no rick of hose-whip. These safety couplings are compliant with the standards ISO 4414 -DIN EN 983 -ISO 6150 Series C (Ø 5.5 mm flow Passage). Material: Reinforced Polymeric body. Flow: 883 l/min at 6 bar with Delta P 10%. Max working pressure: 12 bars . Temperature: -15°C to + 70°C
Technical specifications
Attributes
| Connection 1 | G38 |
|---|---|
| Material | Reinforced Polymer Body |
| Standard | ISO C10 |
| Metric passage diameter | 6 mm |
| Max. temperature | 70 °C |
| Min. temperature | -15 °C |
Show UNSPSC/ECL@SS
£ 38.85 excl. VAT
/ Each
£ 46.62 incl. VAT
In stock: Next day delivery
