SKF 22309 E/W64 SRB SOLID OIL
Roller Bearing
References
skf:22309 E/W64
rubix:237A3903
manufacturer :186484
ean:07316572072431
Technical specifications
| Inner diameter | 45 mm |
|---|---|
| Outer diameter | 100 mm |
| Width | 36 mm |
Product details : SKF 22309 E/W64 SRB SOLID OIL

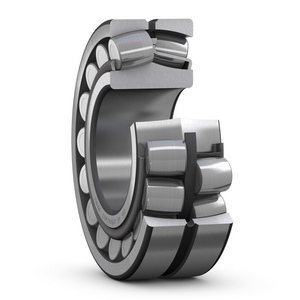

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Strengths
- Accommodate misalignment
- High load carrying capacity
- Accommodate very high vibration levels
- Low friction and long service life
- Increased wear resistance
- High load carrying capacity
- Accommodate very high vibration levels
- Low friction and long service life
- Increased wear resistance
Technical specifications
Attributes
| Logistic Weight | 1379,3 g |
|---|---|
| Inner diameter | 45 mm |
| Outer diameter | 100 mm |
| Width | 36 mm |
| Bearing Clearance | CN |
| Series | 223CE |
| Limit speed | 1170 rpm |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 278.03 excl. VAT
/ Each
£ 333.64 incl. VAT
Usually arrives within 14 working days
